Mining LP Drills®

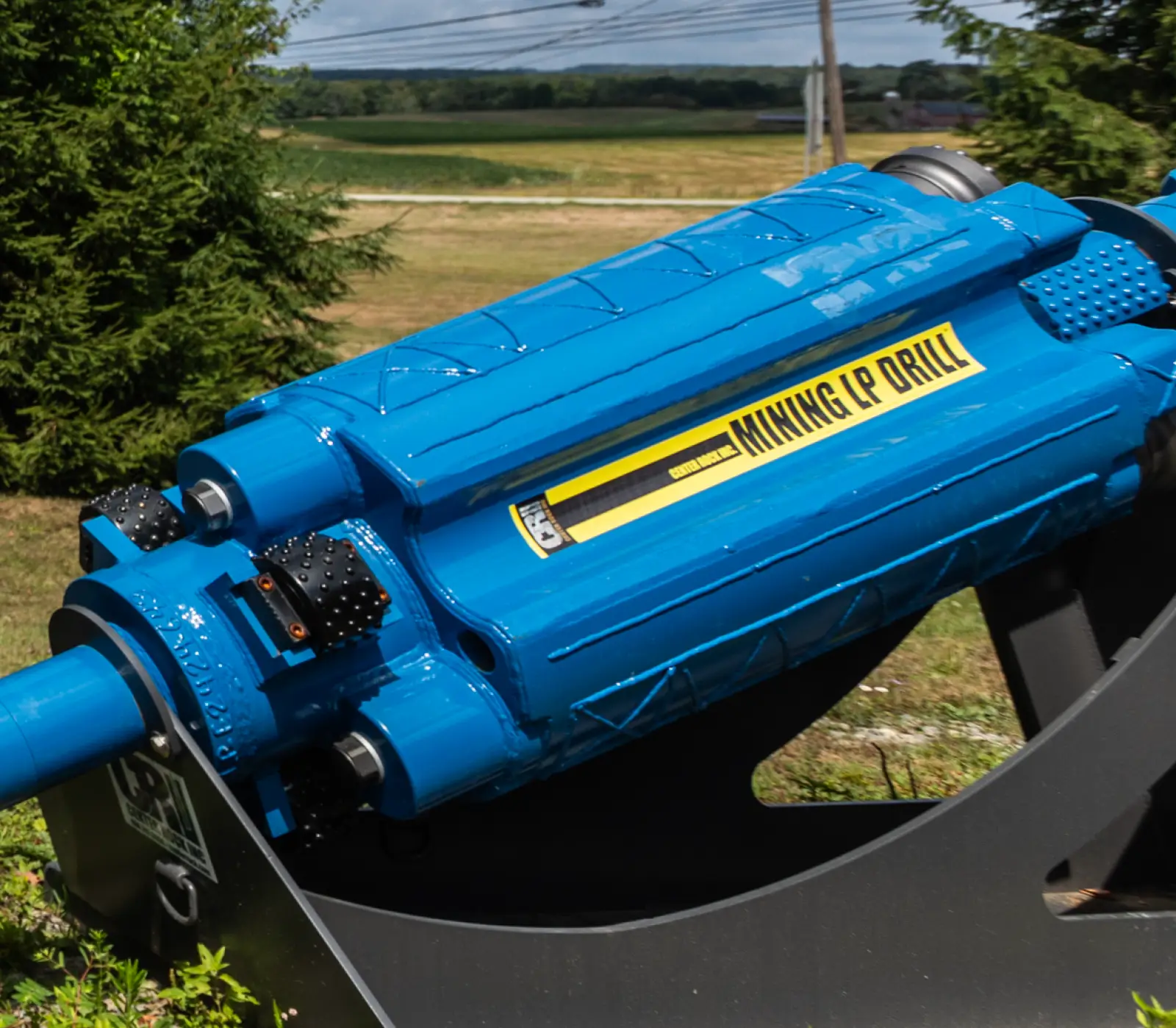

Our mining drill, the Mining LP DRILL®, is an updated version of the very same LP used for the Chilean Mine Rescue. This type of LP DRILL is specially designed for angled holes, using a stinger with a pilot hole to guide the Mining LP DRILL.

Mining Drills Features & Benefits

There are several special design features that have been added to the product to ensure applicability to the harsh, underground mining environment. Mining LPs are used to create “burn holes,” utility holes, ventilation, dewatering, and rescue shafts from 24” (610 mm) and up

24” (610 mm) and larger diameters available

Push or pull applications

Bits are free to spin, which helps to maintain the gauge of the bore and also reduces wear on the bits

Hammers and bits are easily accessible for service work

Complete service package with each tool

Each LP is fitted with a group of 6” (152.4 mm) class hammers and 7.88” (200 mm) bits. The size of the bore will determine the number of hammers for each canister

Air consumption requirements, 400-500 cfm per hammer. For example, a 30” (762 mm) LP has three hammers requiring a minimum of 1200 cfm

Each hammer is easily accessible by removing the LP bolt and removing the hammer from the canister

Trained technicians to assist with the startup of each LP for proper tooling techniques.

Service is available to our customers 24/7

Size (IN)	Size (MM)	Number of Hammers	Minimum Air Required (SCFM)	Minimum Air Required (M³/MIN)	Recommended Air Required (SCFM)	Recommended Air Required (M³/MIN)	Weight with the CALYX (LBS)	Weight with the CALYX (KG)
20	508	4	1000	23	1400	40	1350	612
22	559	4	1000	23	1400	40	1550	703
24	610	4	1600	45	2000	57	3250	1474
25	635	5	2000	57	2500	71	3500	1587
26	660	5	2000	57	2500	71	4000	1814
28	711	5	2000	57	2500	71	4200	1905
30	762	5	2000	57	2500	71	4700	2131
32	813	6	2400	68	3000	85	5500	2494
33	838	6	2400	68	3000	85	6000	2721
34	864	6	2400	68	3000	85	6200	2812
35.5	900	7	2800	79	3500	99	6500	2948
36	914	7	2800	79	3500	99	6800	3084
41.5	1054	7	2800	79	3500	99	8300	3764
42	1067	7	2800	79	3500	99	8500	3855
48	1219	10	4000	113	5000	142	10700	4853
53	1346	12	4800	136	6000	170	12700	5760
58	1473	13	5200	147	6500	184	14900	6758
60	1524	13	5200	147	6500	184	16500	7484

Built For

Efficiency in Mining Applications

The Mining LP DRILL® stands as a trusted solution among drills for mining, designed to power through the rigors of underground work with both precision and durability. From rescue shaft drilling to utility and ventilation holes, each drill is engineered to meet the highest standards, ensuring the reliability necessary for challenging mining environments.

With sizes starting at 24 inches (610 mm), the Mining LP Drill® adapts seamlessly to specific project needs, supporting angled and vertical drilling applications. Each drill is configured for push or pull operation, allowing it to tackle various shaft drilling conditions with minimal adjustments.

Enhanced Performance and Service

Equipped with freely spinning bits that maintain bore accuracy while reducing wear, each LP Drill® maximizes efficiency and longevity. With a simple design that allows for quick hammer access and easy servicing, these drills help crews minimize downtime. With air consumption levels of 400-500 cfm per hammer, the Mining LP Drill® delivers consistent power output across varying underground applications, whether it’s for standard utility holes or high-demand rescue shafts.
