Center Rock
Drilling Support Equipment
CENTER ROCK offers a complete lineup of support equipment and drilling accessories designed to maximize performance and keep your operation running efficiently. Our offerings include Drill Support Platforms, HYDRO-JAW® 1200 and 2400 Series breakout/make-up systems, water and oil injection systems, HONEY HAMMER® and HAMMER HONEY Eco rock drill oil, and custom mobile workshops.
Performance Systems

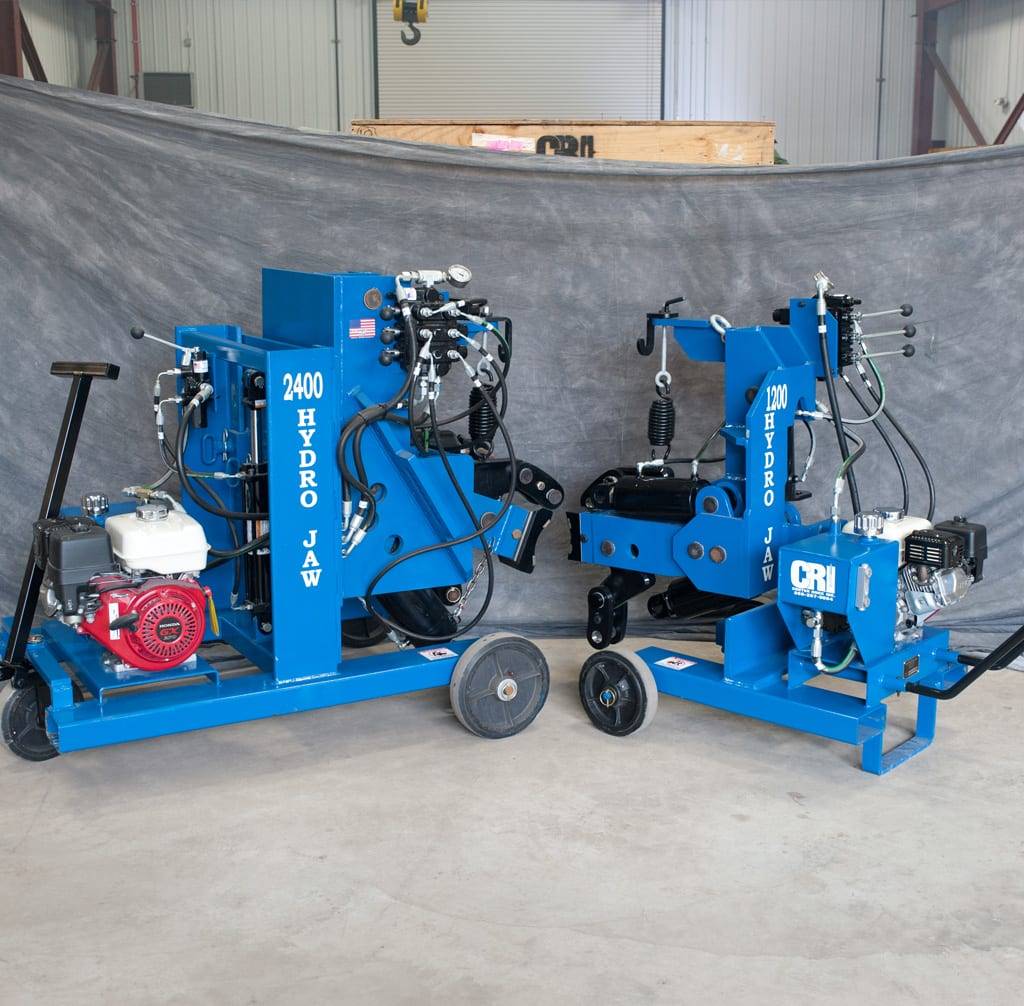

Breakout Systems

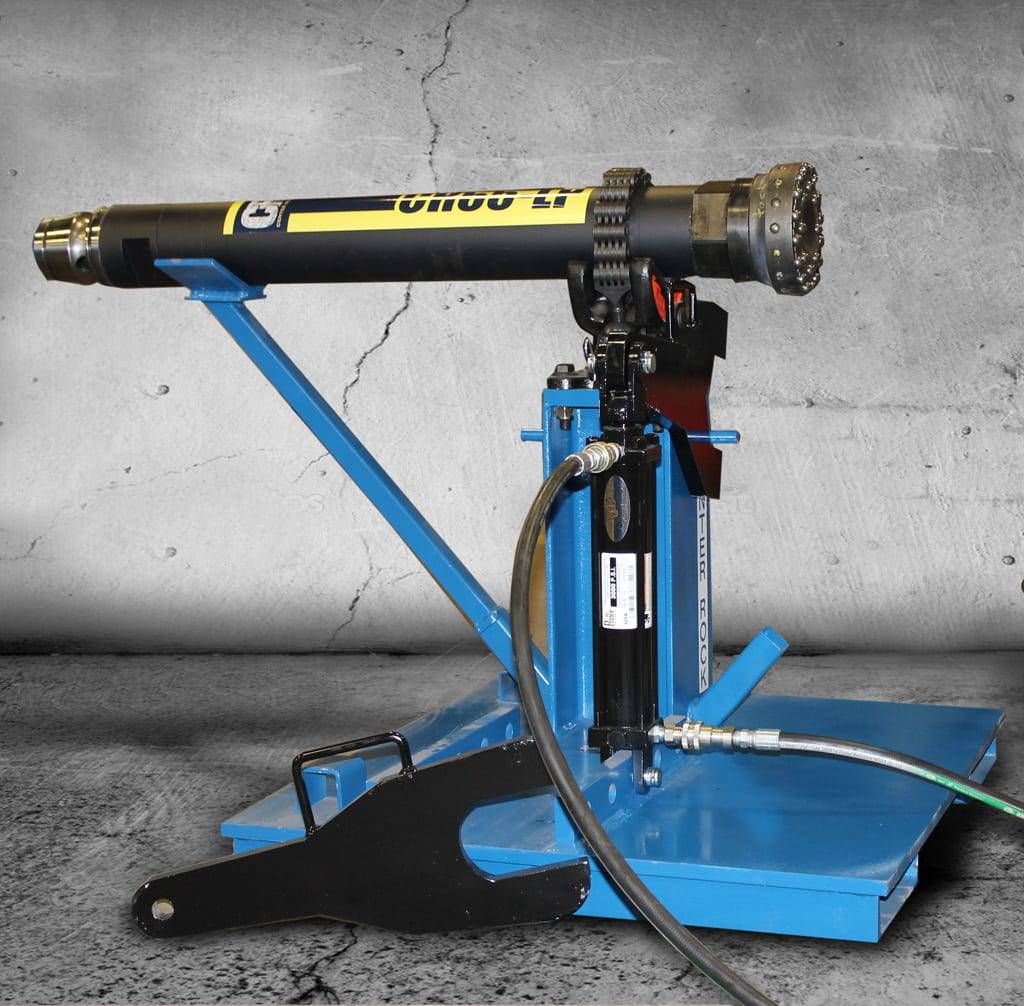

LP Breakout Stand
The Center Rock LP Breakout Stand provides a stable, secure platform for servicing LP drills and changing tooling with greater safety and efficiency. Built for durability and ease of use, it helps streamline maintenance while reducing downtime on the job site.
Ratchet Attachment
The Center Rock Ratchet Attachment provides a convenient air supply connection for LP drills when the drill rig lacks an air inlet. Designed for compatibility with a variety of Kelly Boxes, it delivers dependable performance while allowing smooth drill rotation during operation.
Equipment Attachments
Skid Steer Attachment
Air & Fluid Systems

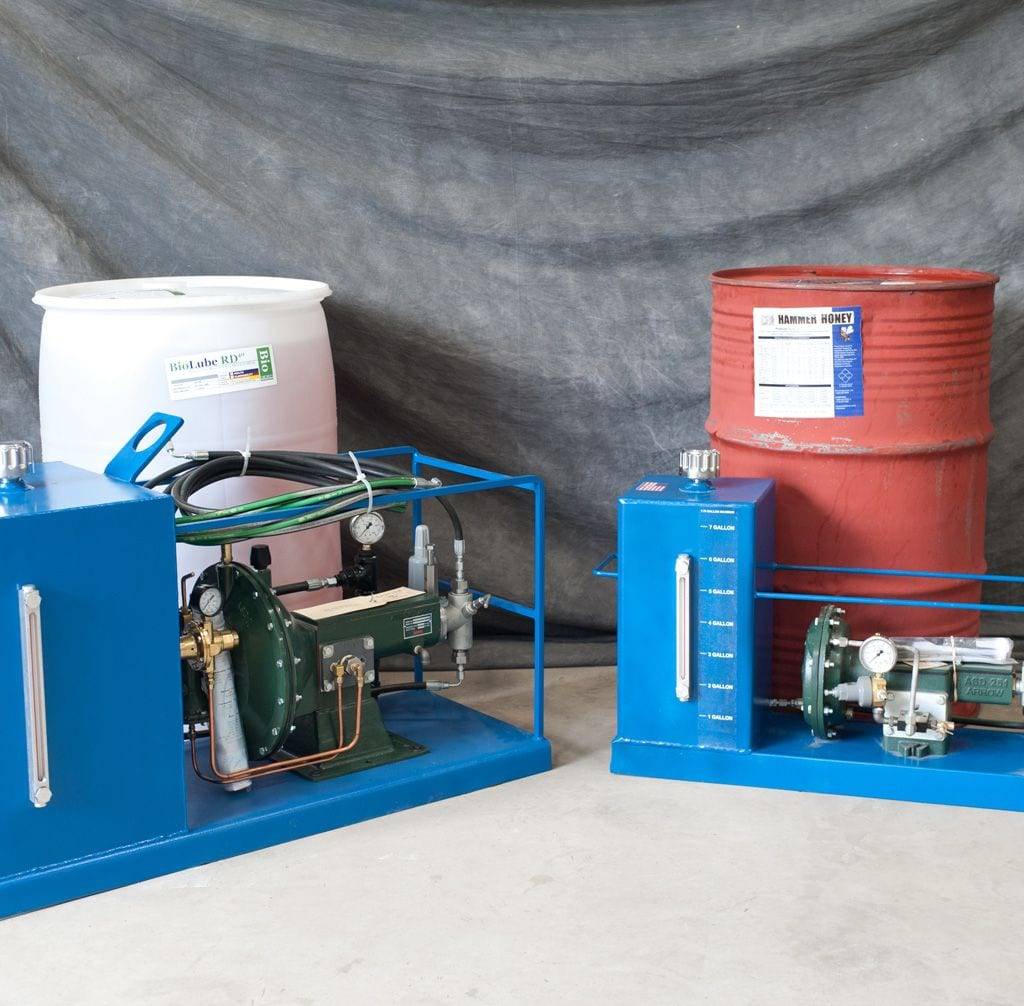

Oil Injection System
Our self-contained oil injection systems deliver precise, air-actuated positive displacement performance for reliable lubrication in demanding drilling applications. Available with either a 7-gallon or 22-gallon reservoir featuring an integrated sight glass and adjustable flow rates, each system is designed for efficiency and uses biodegradable rock drill oil that meets EPA standards.

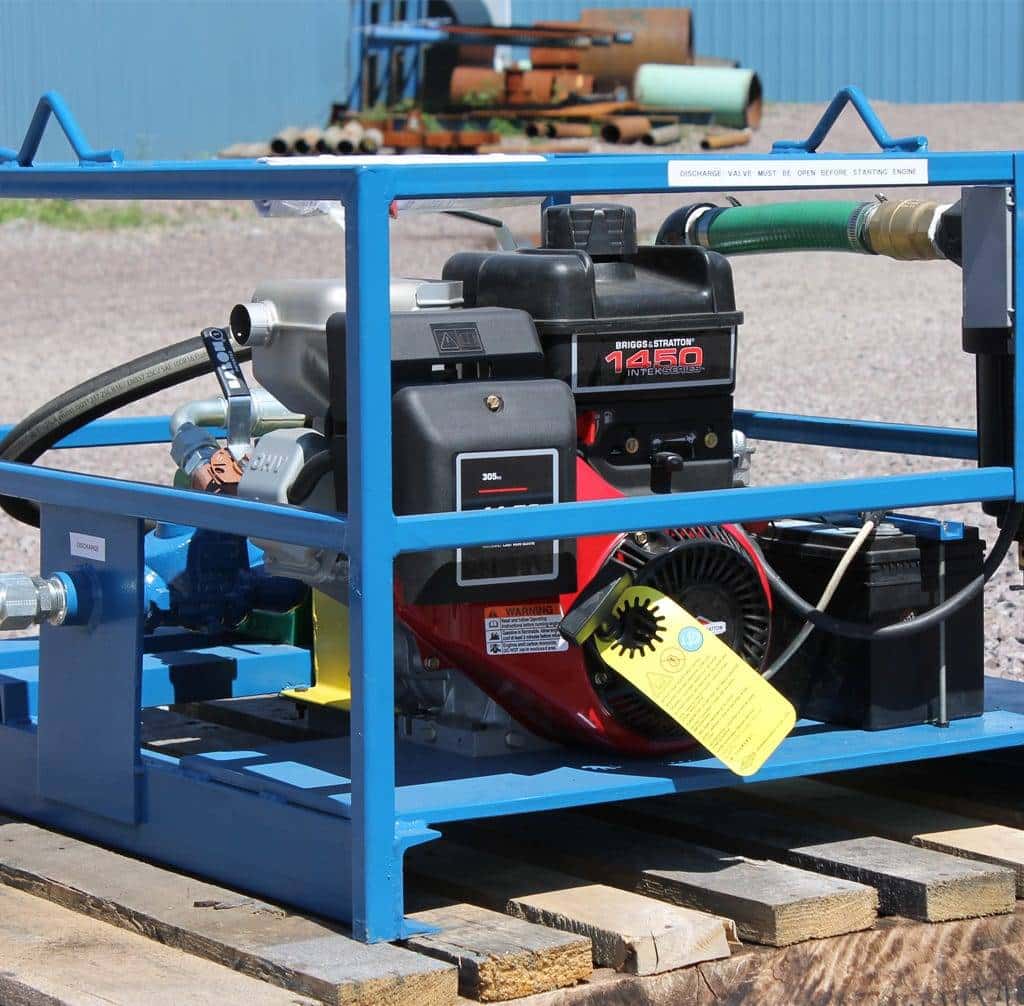

Water Injection Systems
Designed for effective dust suppression, our water injection systems provide dependable performance in challenging field conditions. Each unit features a 14.5 HP engine, a high-output triple piston pump, electric start, a protective guarded frame, a winterizing kit, and durable inlet and discharge connections for reliable operation year-round.

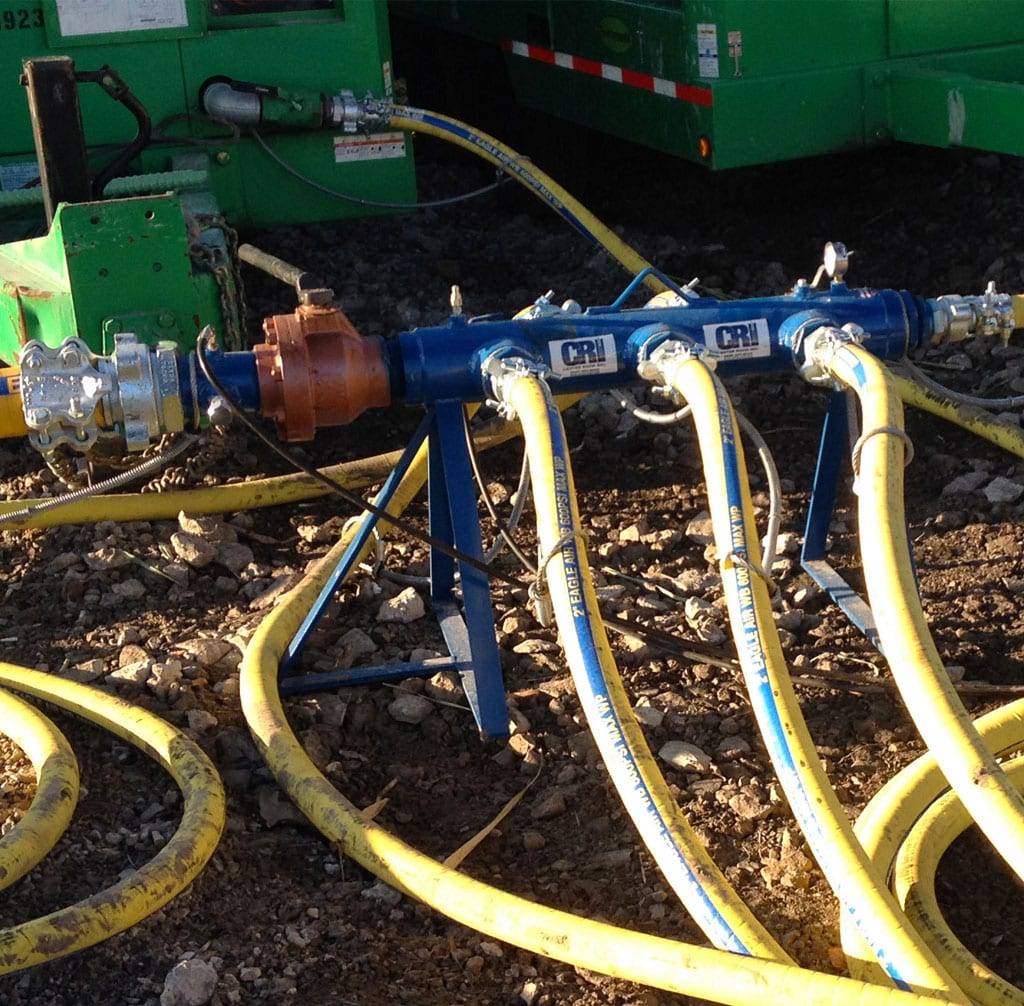

Air Manifold
Our heavy-duty air manifolds provide an efficient way to connect multiple compressors to a single air supply, helping maximize productivity on the jobsite. Designed for rugged field use, each manifold features multiple inlet, outlet, and auxiliary ports to deliver flexible air distribution for a variety of drilling applications.

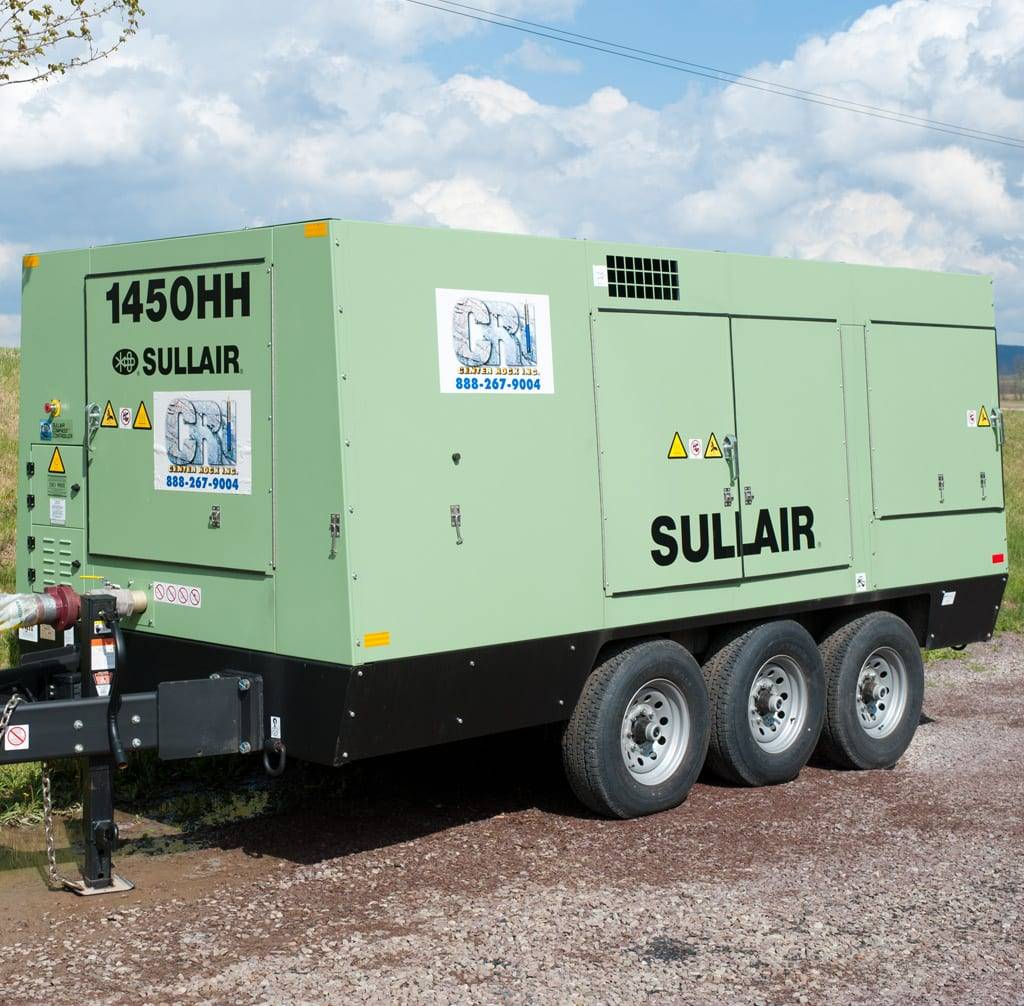

1450/200 Air Compressor
Available for both sale and rental, our 1450/200 air compressors deliver the high-volume air needed to power multi-hammer LP drilling operations. Producing 1,450 CFM at 200 PSI, these dependable compressors are built to provide the consistent performance and reliability required for demanding drilling projects.
Jobsite Support Equipment

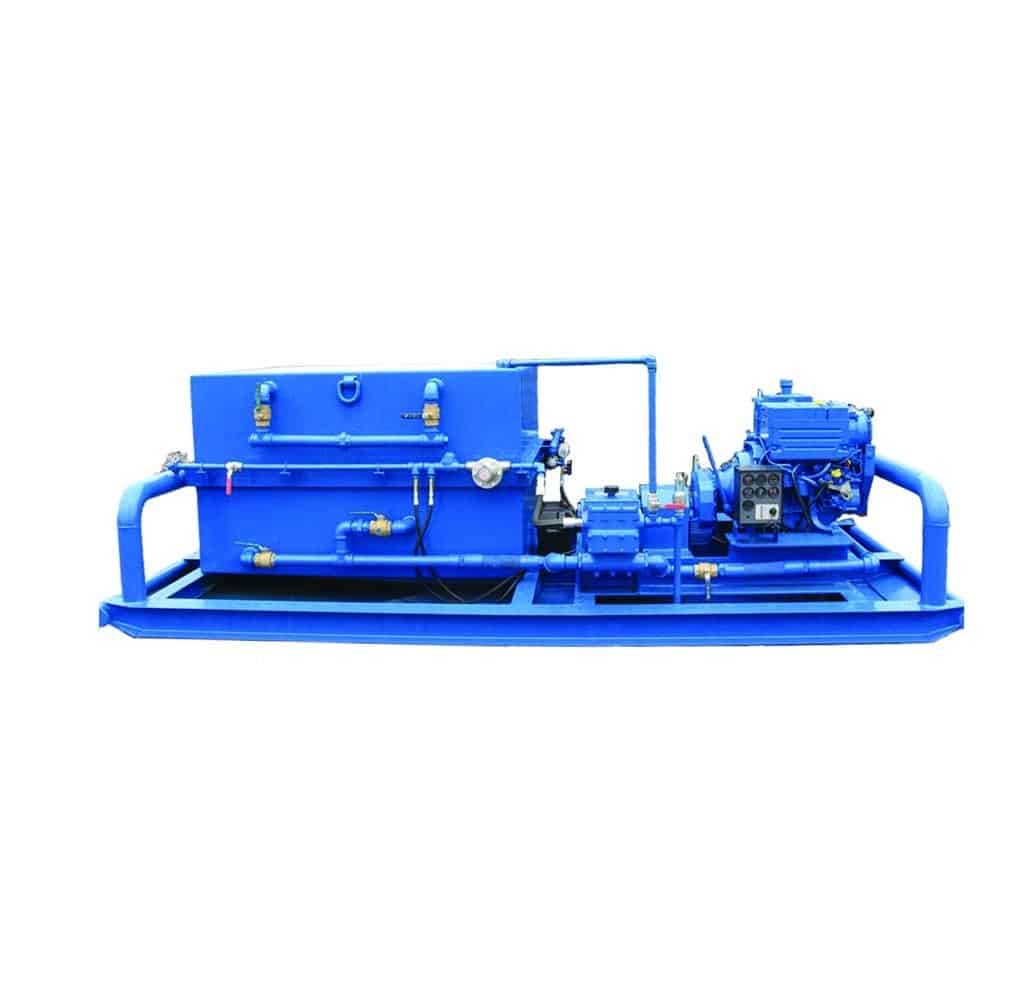

Soap Houses
Our soap houses and mist houses provide a complete mixing and pumping solution designed for reliability and efficiency in the field. Built to your specifications, each unit includes a variable-speed drive motor, high-volume load/mix pump, replaceable soap and water holding tanks, recessed lighting and ports, water-resistant electrical components, 480V power with heat, and convenient access for loading, maintenance, and operation.

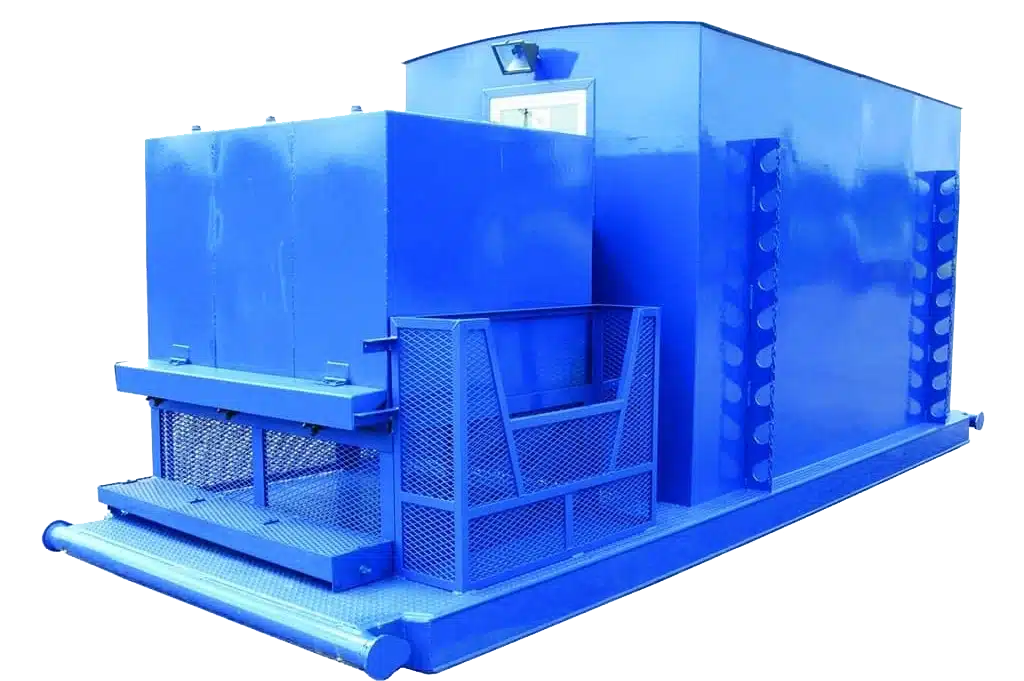

Dog Houses
Our dog houses are built to meet your exact operational requirements, with every component sized to fit your application. Each unit is mounted on a self-draining oilfield mud boat skid and includes recessed interior and exterior lighting, a 480V heater, lockers, a knowledge box, and durable workbenches to create a safe, organized, and efficient workspace in the field.
Mist Pumps
Our mist pump systems are engineered for dependable field performance and can be customized to meet your specific needs. Standard units are built on a 7′ × 14′ skid and feature an air-cooled diesel engine, gear-driven pump, onboard fuel and slug tanks, and two removable open-top tanks, providing a rugged, self-contained solution for demanding drilling operations.
CENTER ROCK INC.’s® custom designs 20ʼ and 40ʼ mobile workshops as an on-site solution for servicing and maintaining your DTH hammers and bits.
The mobile workshop offers a comfortable, climate controlled environment with your safety in mind featuring an explosion proof exhaust fan, an overhead bridge crane for safe lifting, and ergonomic work stations.
Utilization of the automatic bit sharpener will ensure maximum bit life over the course of your project and effective hammer maintenance ensures peak operational performance. We also provide custom painting and labeling to match your fleet.
Give us a call today and let our design team customize a mobile workstation to fit your needs.
Available Features:
- Heat and air conditioning with protective cage
- High efficiency, explosion-proof exhaust fan Air compressor with air drops throughout workshop
- One ton overhead crane running the entire length of the workshop
- Electrical Discharge Machine (EDM) for replacing carbide inserts
- CME automatic drill bit sharpener, water cooled with in tank filtration
- 200 amp electrical service with 240 volt single phase and outlets
- Explosion proof safety lighting throughout workshop
- Security enhanced 36” man door and barred windows
- Tool box, job box, hammer racks and storage racks with doors
- Customized fold-out hammer repair bench and dedicated parts wash table
- HYDRO-JAW® and Breakout stand for tool disassembly image gallery
Custom Mobile Workshop
Lubricants & Consumables
Hammer Honey®
CRI® HAMMER HONEY® is a premium rock drill oil engineered for demanding down-the-hole drilling applications. Its advanced formula delivers exceptional lubrication, corrosion protection, and extreme-pressure performance to help reduce wear, prevent galling, and extend the life of hammers and drill bits in the toughest operating conditions.
Hammer Honey ECO®
CRI® HAMMER HONEY ECO® delivers the same premium performance as HAMMER HONEY® in a biodegradable formula. Designed for demanding down-the-hole drilling applications, it provides outstanding lubrication, corrosion protection, and extreme-pressure performance while helping reduce environmental impact without sacrificing reliability.
Critical Support Equipment
Drill Support Platform
Center Rock’s Drilling Support Platform is engineered to improve safety, efficiency, and productivity on the job site. Featuring an integrated air manifold, oil injection system, water injection system, and pressure gauges, it provides the essential support needed for reliable, high-volume air drilling operations.

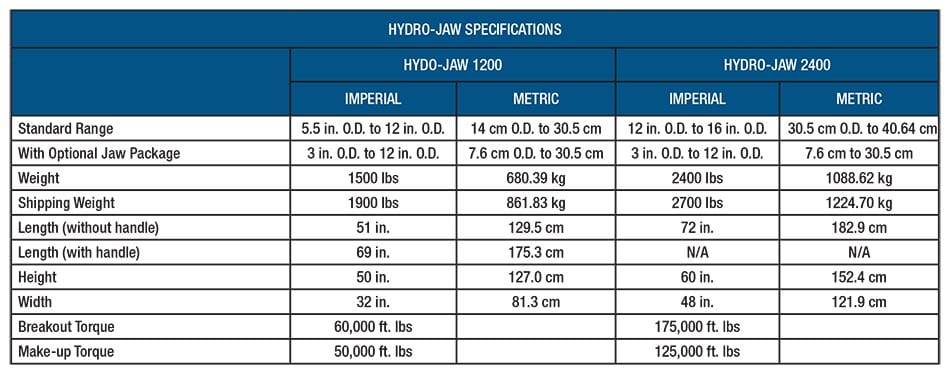

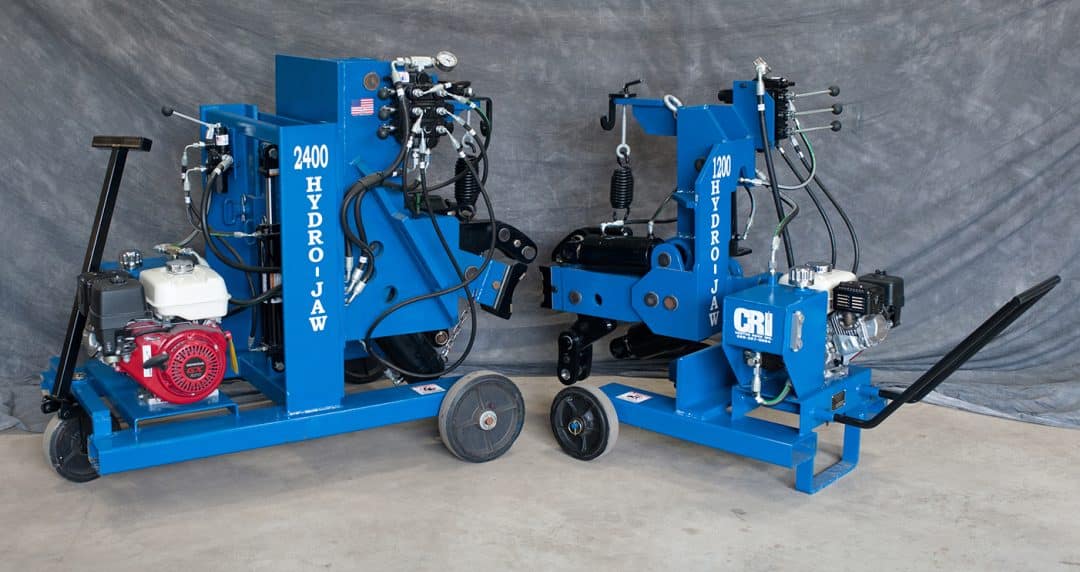

Hydro Jaws
Center Rock’s Drilling Support Platform is engineered to improve safety, efficiency, and productivity on the job site. Featuring an integrated air manifold, oil injection system, water injection system, and pressure gauges, it provides the essential support needed for reliable, high-volume air drilling operations.
Let’s Talk
